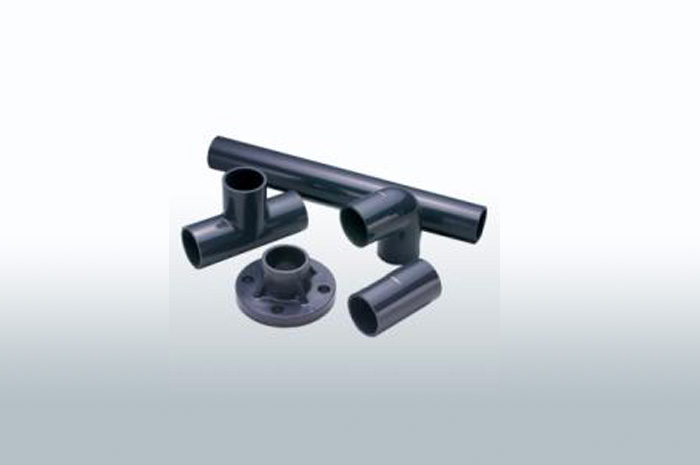

HP-PVC (Clean PVC)

HP-PVC (Clean PVC)

    • Smooth pipe wall The pipe wall is smooth and mirror-shaped which is not easy to breed bacteria. The friction loss in the pipeline is minimal.
    • Oil-free treatment All piping and joints are physically degreased, cleaned, oil-free, and dustless cut-off during assembly and packaging.
    • Opaque HP-PVC can avoid light penetration to prevent germ growth.
    • Cost-saving Compared with PVDF, PP, SUS and other material in the pure water system, the price of ASAHI HP-PVC is more affordable.
    • Simple construction Use solvent to the joints to avoid the leakage with TS construction method.
Back

ASAHI HP-PVC (Clean PVC) is a special formulation which is suitable for the ultra-pure water system. Its material does not contain lead (Plumbum, Pb). The amount of dissolved metal and TOC is very small which is excellent in applying into pure water transportation system.

Fields of Applications Applicable industries

High-purity water transportation system
Acid and alkali (chemical) transportation system
Medical system (renal dialysis equipment)
Portable water system
Chemical fluid transportation system

Electronic industry/ Semiconductor industry/
TFT-LCD industry/ Panel industry
Medical and Pharmaceutical industry





Size Range：13mm~315mm 3/8" ~ 12"
Standard：JIS
Supplier：ASAHI YUKIZAI

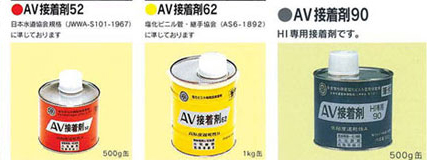

AV Solvent Cement Type 52/62 Specification Sheet
Items
Feature
Color of Can
Viscosity
(CP)
Reduction by drying
(%)
Cementing strength(kgf/cm2)
Applicable sizes
After 15 min.
After 2 hours
AV NO. 52
High viscosity
quick drying
red
800~1,500
30~50
over 12.5
over 25
3/8"~6"
AV NO. 62
High viscosity
slow drying
yellow
500~1,500
10~30
—
over 15
above 6"
